| Category | Item | Specification |
|---|---|---|
| Product Details | Model | DS-D41Q20CA-1GS |
| Module Type | Flexible Soft LED Module | |
| Module Specifications | Pixel Configuration | SMD Triad LED |
| Pixel Pitch | 2 mm | |
| Lamp Bead Size | 1515 | |
| Module Dimensions | 320 mm × 160 mm × 13 mm | |
| Module Resolution | 160 × 80 pixels | |
| Pixel Density | 250,000 dots/m² | |
| Signal Interface | HUB75E | |
| Display Features | Brightness (White Balance) | 600 cd/m² |
| Color Temperature | 3000K to 10000K Adjustable | |
| Viewing Angle | 160° (H) / 160° (V) | |
| Brightness Uniformity | ≥ 97% | |
| Color Uniformity | ≤ ±0.003 Cx, Cy | |
| Contrast Ratio | 3000:1 | |
| Refresh Rate | 3840 Hz | |
| Processing Performance | Scanning Method | 40 Scan |
| Grey Scale Level | Up to 16-bit | |
| Power Consumption | Maximum Consumption | ≤ 470 W/m² |
| Average Consumption | < 270 W/m² | |
| Input Voltage | AC 100 V to 240 V~ | |
| Working Voltage | DC 4.5 V to 5 V | |
| General Features | Module Feature | Flexible Multi-layer PCB with Silicone Soft Cover |
| Installation | Magnetic Front Service for Easy Maintenance | |
| Bending | Supports Convex and Concave Curved Display | |
| Packing List | Magnetic Mounting Accessories | Included |
| Signal Cables and Power Cables | Included | |
| Weight Details | Net Weight | 0.25 kg (Approx.) |
| Working Environment | Operating Temperature | -10°C to 40°C |
| Operating Humidity | 10% RH to 80% RH (Non-condensing) | |
| Storage Conditions | Storage Temperature | -20°C to 60°C |
| Storage Humidity | 10% RH to 85% RH (Non-condensing) |

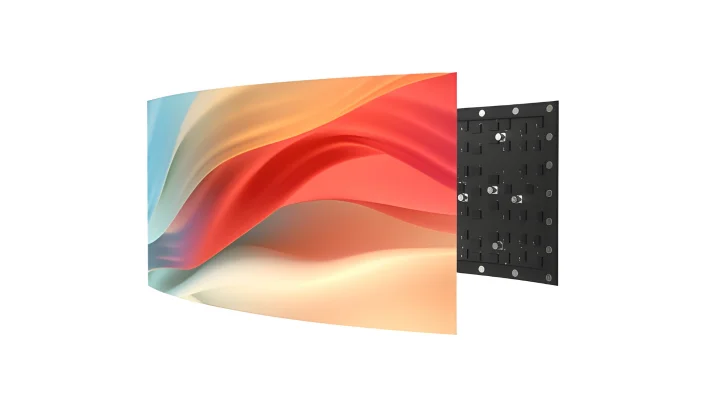

P 2 MM Indoor Flexible LED Module
- Flexible and malleable: Select the flexible multi-layer PCB soft board, and silicon soft panel with a special texture structure design. Optimized circuit layout can ensure that the soft module is flexible to design various shapes.
- Stable and citable: Fully tested and optimized magnet size and distribution structure design, cutting-edge magnetic suction density configuration can ensure a better fit of the soft module to the cabinet frame without seam.
- Ultra-thin and lightweight: Advanced ultra-thin design, space-saving characteristic can help to design diverse shapes.
- Fine pixel pitch: High-quality lamp beads, intelligent production line process to ensure that the high consistency of display effect of overall lamp beads with good quality, high contrast ratio, and high refresh rate.
- Soft image: Hikvision’s self-developed control system and dynamic engine algorithm can help to automatically identify and handle the harsh images to realize senseless regulation and control. The image is soft and comfortable to view and its quality is enhanced while unnecessary power consumption is reduced, which is more energy saving.
